RatPac’s new Satellite™ is the all-in-one Art-Net to wireless DMX transmitter, with splash resistant enclosure, tactile membrane LED buttons and a rugged micro USB connection. Connect via WIFI or plug directly into any console via RJ45 . Connect multiple units and universes with the Constellation© tool.
SATELLITE™ FEATURES:
- REMOTE LINKING & CONFIGURATION ABILITIES
- sACN SUPPORT & EXPANDED ART-NET SETTINGS
- WIFI CLIENT: STANDARD WIFI HOST FUNCTIONALITY
- CONNECT ADDITIONAL AKS UNITS TO A HOST
- ETHERNET CLIENT: CONNECT ADDITIONAL SATELLITE™ UNITS TO A HOST AKS AS AN ETHERNET CLIENT
- CONSTELLATION TOOL ALLOWS EASY DETECTION & CONFIGURATION OF EVERY CONNECTED AKS ON NETWORK
- EASY ONE BUTTON CONFIGURATION
- 8 HOUR BATTERY LIFE
- CRMX TRANSMITTER RANGE UP TO 300 METERS
- COMPATIBLE WITH ALL WIFI TABLETS AND SMART PHONES
- DESIGNED FOR ESD IMMUNITY (ELECTRO-STATIC DISCHARGE)
- RUGGED MICRO USB CHARGER
- UNIVERSE INDICATION BY COLOR
- SPLASH RESISTANT ENCLOSURE
- BUILT IN MAGNET AT BASE
- ETHERNET OR WIFI OPERATION
FEATURES:
- ERROR CORRECTION, 128 BIT ENCRYPTION
- INTELLIGENT 2. 4 GHz FREQUENCY HOPPING
- COMPATIBLE WITH ALL WIRELESS RATPAC PRODUCTS
- 1/4-20 THREADED INSERT MOUNT
- UNIVERSE INDICATION BY COLOR: CONFIGURABLE VIA CONSTELLATION IN UPDATE
- LED MEMBRANES INDICATE BATTERY LIFE AND SIGNAL STRENGTH
Timo Link RX Receivers
Built with CRMX modules from LumenRadio for filmmakers, broadcasters, and others, the TimoLink RX Wireless DMX Receiver from Godox converts a wired DMX console to wireless by receiving signals from CRMX-compatible fixtures or transmitters at a range of up to 300m. The five-pin female XLR connector rotates up to 270° for wider compatibility with different interface designs.
Ratpac Satellite:
INPUT:
5V DC (micro-B 5-pin)
DIMENSIONS:
127 mm (H) × 63.5 mm (W) × 44.45 mm (D)
WEIGHT:
198.4 g
ANTENNAS:
2.4 GHz 2 dBi internal antenna
External dipole paddle antenna
Timo Link:
| Inputs/Outputs |
1x XLR 5-Pin (DMX) Female |
| Cooling System |
No |
| Wireless Range |
300 m |
Power
| Input Power |
5 VDC at 90 mA |
Physical
| Operating Conditions |
-20 to 45°C |
| Environmental Resistance |
No |
| Dimensions |
110.0 x 53.0 x 26.0 mm |
| Weight |
80 g |
CRMX Transmitter Kit
RatPac’s new Satellite™ is the all-in-one Art-Net to wireless DMX transmitter, with splash resistant enclosure, tactile membrane LED buttons and a rugged micro USB connection. Connect via WIFI or plug directly into any console via RJ45 . Connect multiple units and universes with the Constellation© tool.
SATELLITE™ FEATURES:
- REMOTE LINKING & CONFIGURATION ABILITIES
- sACN SUPPORT & EXPANDED ART-NET SETTINGS
- WIFI CLIENT: STANDARD WIFI HOST FUNCTIONALITY
- CONNECT ADDITIONAL AKS UNITS TO A HOST
- ETHERNET CLIENT: CONNECT ADDITIONAL SATELLITE™ UNITS TO A HOST AKS AS AN ETHERNET CLIENT
- CONSTELLATION TOOL ALLOWS EASY DETECTION & CONFIGURATION OF EVERY CONNECTED AKS ON NETWORK
- EASY ONE BUTTON CONFIGURATION
- 8 HOUR BATTERY LIFE
- CRMX TRANSMITTER RANGE UP TO 300 METERS
- COMPATIBLE WITH ALL WIFI TABLETS AND SMART PHONES
- DESIGNED FOR ESD IMMUNITY (ELECTRO-STATIC DISCHARGE)
- RUGGED MICRO USB CHARGER
- UNIVERSE INDICATION BY COLOR
- SPLASH RESISTANT ENCLOSURE
- BUILT IN MAGNET AT BASE
- ETHERNET OR WIFI OPERATION
FEATURES:
- ERROR CORRECTION, 128 BIT ENCRYPTION
- INTELLIGENT 2. 4 GHz FREQUENCY HOPPING
- COMPATIBLE WITH ALL WIRELESS RATPAC PRODUCTS
- 1/4-20 THREADED INSERT MOUNT
- UNIVERSE INDICATION BY COLOR: CONFIGURABLE VIA CONSTELLATION IN UPDATE
- LED MEMBRANES INDICATE BATTERY LIFE AND SIGNAL STRENGTH
Timo Link RX Receivers
Built with CRMX modules from LumenRadio for filmmakers, broadcasters, and others, the TimoLink RX Wireless DMX Receiver from Godox converts a wired DMX console to wireless by receiving signals from CRMX-compatible fixtures or transmitters at a range of up to 300m. The five-pin female XLR connector rotates up to 270° for wider compatibility with different interface designs.
Ratpac Satellite:
INPUT:
5V DC (micro-B 5-pin)
DIMENSIONS:
127 mm (H) × 63.5 mm (W) × 44.45 mm (D)
WEIGHT:
198.4 g
ANTENNAS:
2.4 GHz 2 dBi internal antenna
External dipole paddle antenna
Timo Link:
| Inputs/Outputs |
1x XLR 5-Pin (DMX) Female |
| Cooling System |
No |
| Wireless Range |
300 m |
Power
| Input Power |
5 VDC at 90 mA |
Physical
| Operating Conditions |
-20 to 45°C |
| Environmental Resistance |
No |
| Dimensions |
110.0 x 53.0 x 26.0 mm |
| Weight |
80 g |

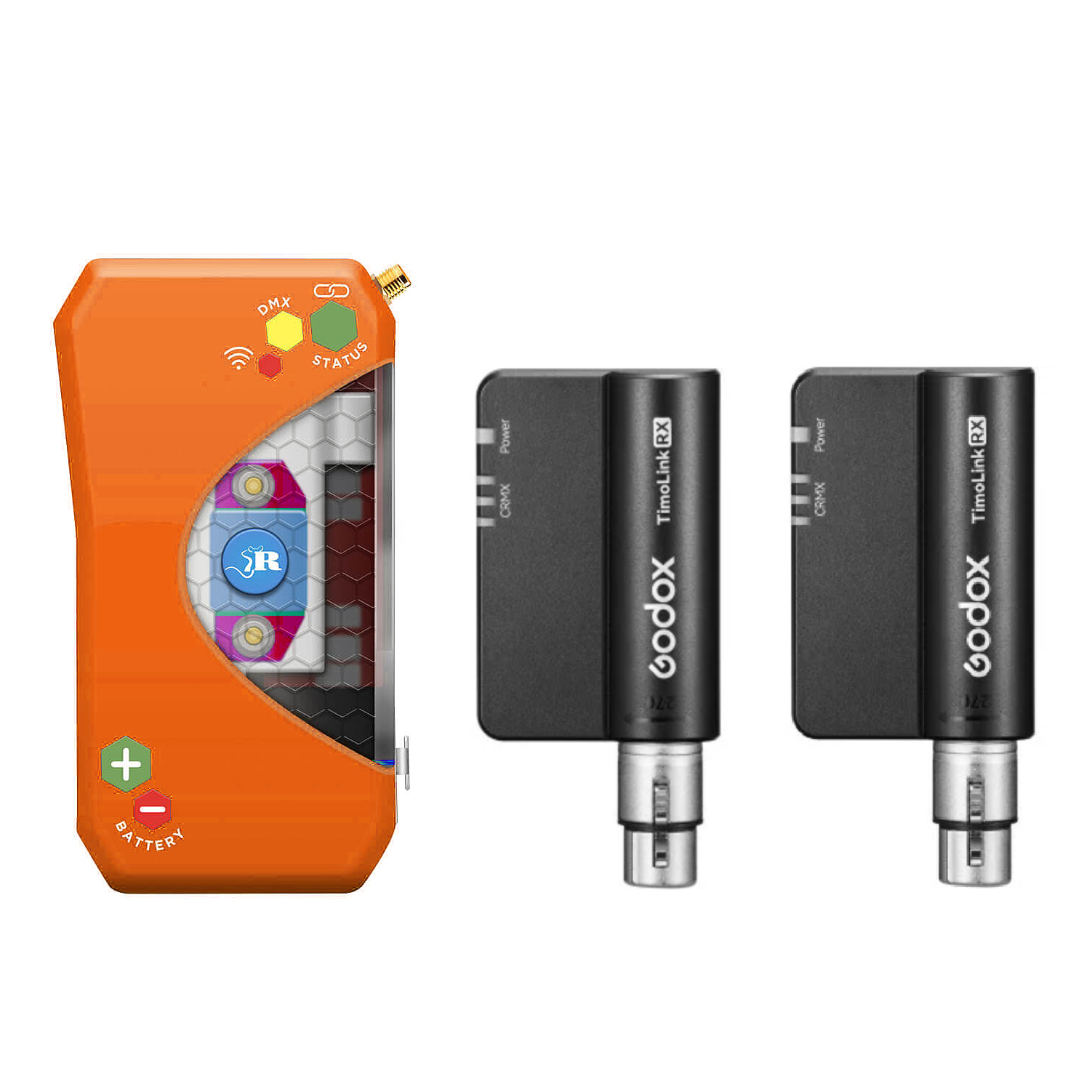

Included in the box
1x RATPAC Satellite Transmitter, 1x Antenna, 1x Charger w/ Cable, 2x Timo Link Receivers w/ USB-C Charging Cable, 2x 5-pin DMX Terminating Resistor Plugs, 1x Adapter Lighting -> LAN, 1x Bag.
