ARRI SkyPanel S30-C — compact, powerful and fully color-tunable LED soft-light. The S30-C delivers high-quality, broad, soft light in a small, lightweight form factor, making it ideal for location work, interviews, studio setups or social-media content creation. With a continuously adjustable color temperature (from warm tungsten to daylight and beyond), full RGB+W gamut control, and smooth 0–100 % dimming, it offers unsurpassed flexibility and colour accuracy in a compact LED package. Built rugged and reliable — the SkyPanel S30-C is a go-to fixture when portability, controllability, and premium light quality are equally important.
| Specification | Value / Range |
|---|---|
| Light engine / type | RGBW LED soft-light panel |
| Light aperture (active panel) | 355 × 300 mm |
| Beam angle (half-peak) | 105° |
| Color temperature (white light) | 2,800 K – 10,000 K |
| Color control | Full RGB+W gamut; hue & saturation; green–magenta adjustment |
| Color accuracy | CRI > 95, TLCI > 91 |
| Dimming | 0–100 % continuous |
| Power consumption | 200 W nominal (up to ~220 W) |
| Voltage input (AC) | 110–240 V, 50/60 Hz |
| Voltage input (DC / battery) | 48 V DC (head) / 23–36 V DC (battery) |
| Output on battery power | 100 % of maximum output |
| Weight (fixture + standard diffusion) | ~6.3 kg |
| Weight (manual version with yoke) | ~7.7 kg |
| Weight (pole-op version with yoke) | ~9.5 kg |
| Dimensions (manual, incl. pin) | 499 × 507 × 133 mm |
| Tilt / mount | ±90° tilt; yoke mount with 16 mm / 28 mm combo pin |
| Control connections | On-board controls; DMX 5-pin in/out; LAN/EtherCon; USB-A; Art-Net; RDM |
| Optional battery operation | Yes, full-output capable |
| LED lifetime (L70) | 50,000 hours |
| Operating temperature | –20 °C to +45 °C |
| IP rating | IP20 |

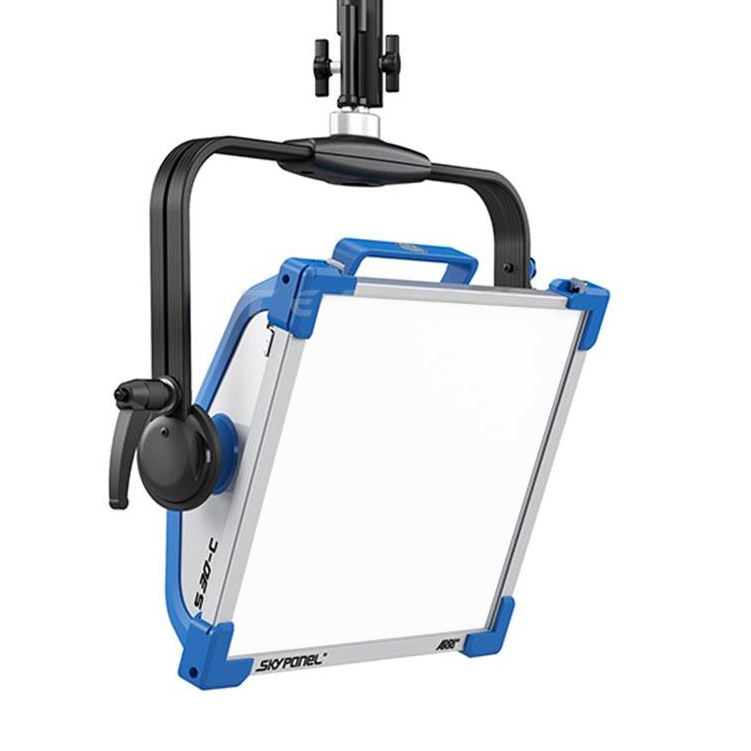

Arri Skypanel - S30-C
ARRI SkyPanel S30-C — compact, powerful and fully color-tunable LED soft-light. The S30-C delivers high-quality, broad, soft light in a small, lightweight form factor, making it ideal for location work, interviews, studio setups or social-media content creation. With a continuously adjustable color temperature (from warm tungsten to daylight and beyond), full RGB+W gamut control, and smooth 0–100 % dimming, it offers unsurpassed flexibility and colour accuracy in a compact LED package. Built rugged and reliable — the SkyPanel S30-C is a go-to fixture when portability, controllability, and premium light quality are equally important.
| Specification | Value / Range |
|---|---|
| Light engine / type | RGBW LED soft-light panel |
| Light aperture (active panel) | 355 × 300 mm |
| Beam angle (half-peak) | 105° |
| Color temperature (white light) | 2,800 K – 10,000 K |
| Color control | Full RGB+W gamut; hue & saturation; green–magenta adjustment |
| Color accuracy | CRI > 95, TLCI > 91 |
| Dimming | 0–100 % continuous |
| Power consumption | 200 W nominal (up to ~220 W) |
| Voltage input (AC) | 110–240 V, 50/60 Hz |
| Voltage input (DC / battery) | 48 V DC (head) / 23–36 V DC (battery) |
| Output on battery power | 100 % of maximum output |
| Weight (fixture + standard diffusion) | ~6.3 kg |
| Weight (manual version with yoke) | ~7.7 kg |
| Weight (pole-op version with yoke) | ~9.5 kg |
| Dimensions (manual, incl. pin) | 499 × 507 × 133 mm |
| Tilt / mount | ±90° tilt; yoke mount with 16 mm / 28 mm combo pin |
| Control connections | On-board controls; DMX 5-pin in/out; LAN/EtherCon; USB-A; Art-Net; RDM |
| Optional battery operation | Yes, full-output capable |
| LED lifetime (L70) | 50,000 hours |
| Operating temperature | –20 °C to +45 °C |
| IP rating | IP20 |
Included in the box
1x Skypanel, 1x Balast, 1x Head-to-balast cable, 1x Power Cable, 1x Flightcase.
