High-output 10" Fresnel lens designed to turn Bowens-mount LED fixtures into powerful, focusable spotlights. Ideal for cinematic hard light, long throws, and precise beam control on film and photo sets.
Technical Specifications (Metric)
-
Lens diameter: 250 mm
-
Beam angle: approx. 15° (spot) – 45° (flood)
-
Mount: Bowens mount
-
Accessory slot diameter: 332.9 mm (13.1")
-
Dimensions (flood): 346 × 340 × 172 mm
-
Dimensions (spot): 346 × 340 × 250 mm
-
Weight: 3.85 kg
-
Light output boost: up to +340% (with LS 600d Pro)
Compatible Lamps (Bowens Mount)
-
Aputure LS 600d / 600x / 600c Pro
-
Aputure LS 1200d / 1200x
-
Aputure STORM series (Bowens / ProLock compatible models)
-
Any high-output Bowens mount LED fixture (≥300W recommended)
Compatible Modifiers
-
Aputure F10 Barn Doors (drop-in slot)
-
13" scrims (drop-in slot)
-
Standard Bowens reflectors (when not using Fresnel)

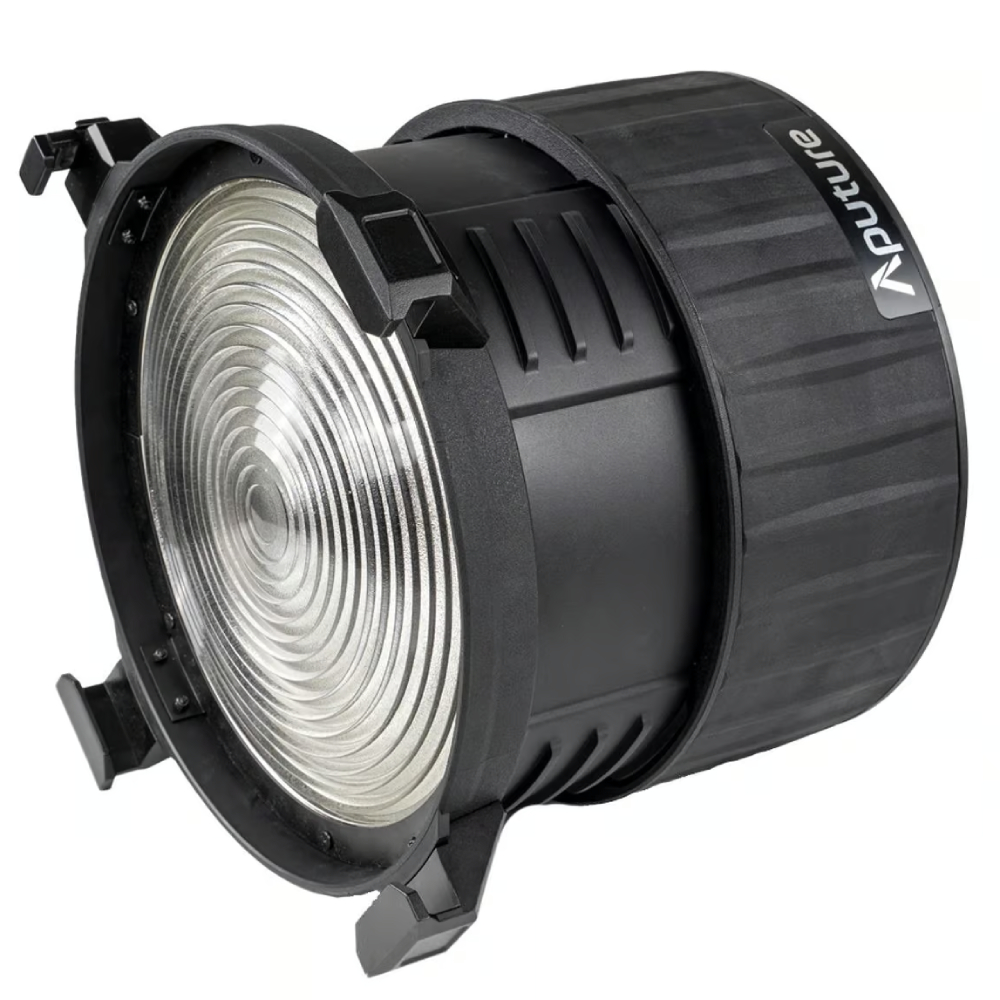

Aputure - Fresnel Mount F10
High-output 10" Fresnel lens designed to turn Bowens-mount LED fixtures into powerful, focusable spotlights. Ideal for cinematic hard light, long throws, and precise beam control on film and photo sets.
Technical Specifications (Metric)
-
Lens diameter: 250 mm
-
Beam angle: approx. 15° (spot) – 45° (flood)
-
Mount: Bowens mount
-
Accessory slot diameter: 332.9 mm (13.1")
-
Dimensions (flood): 346 × 340 × 172 mm
-
Dimensions (spot): 346 × 340 × 250 mm
-
Weight: 3.85 kg
-
Light output boost: up to +340% (with LS 600d Pro)
Compatible Lamps (Bowens Mount)
-
Aputure LS 600d / 600x / 600c Pro
-
Aputure LS 1200d / 1200x
-
Aputure STORM series (Bowens / ProLock compatible models)
-
Any high-output Bowens mount LED fixture (≥300W recommended)
Compatible Modifiers
-
Aputure F10 Barn Doors (drop-in slot)
-
13" scrims (drop-in slot)
-
Standard Bowens reflectors (when not using Fresnel)
Included in the box
1x Fresnel; 1x Case w/ safety inlay on top.
